Concept 001

Jungle Retreat - Studio Suite with Guestroom

$390 SGD
SELECTED:

SELECTED
Quantity:

PROJECT INFORMATION

Introducing Concept 001, a meticulously crafted Concept Design package ideal for tropical and subtropical resort villa projects. This comprehensive Predesigned Concept Package offers developers conceptual drawings and high-resolution 3D renderings, providing a head start for the new project.

This Predesigned Concept Package includes:

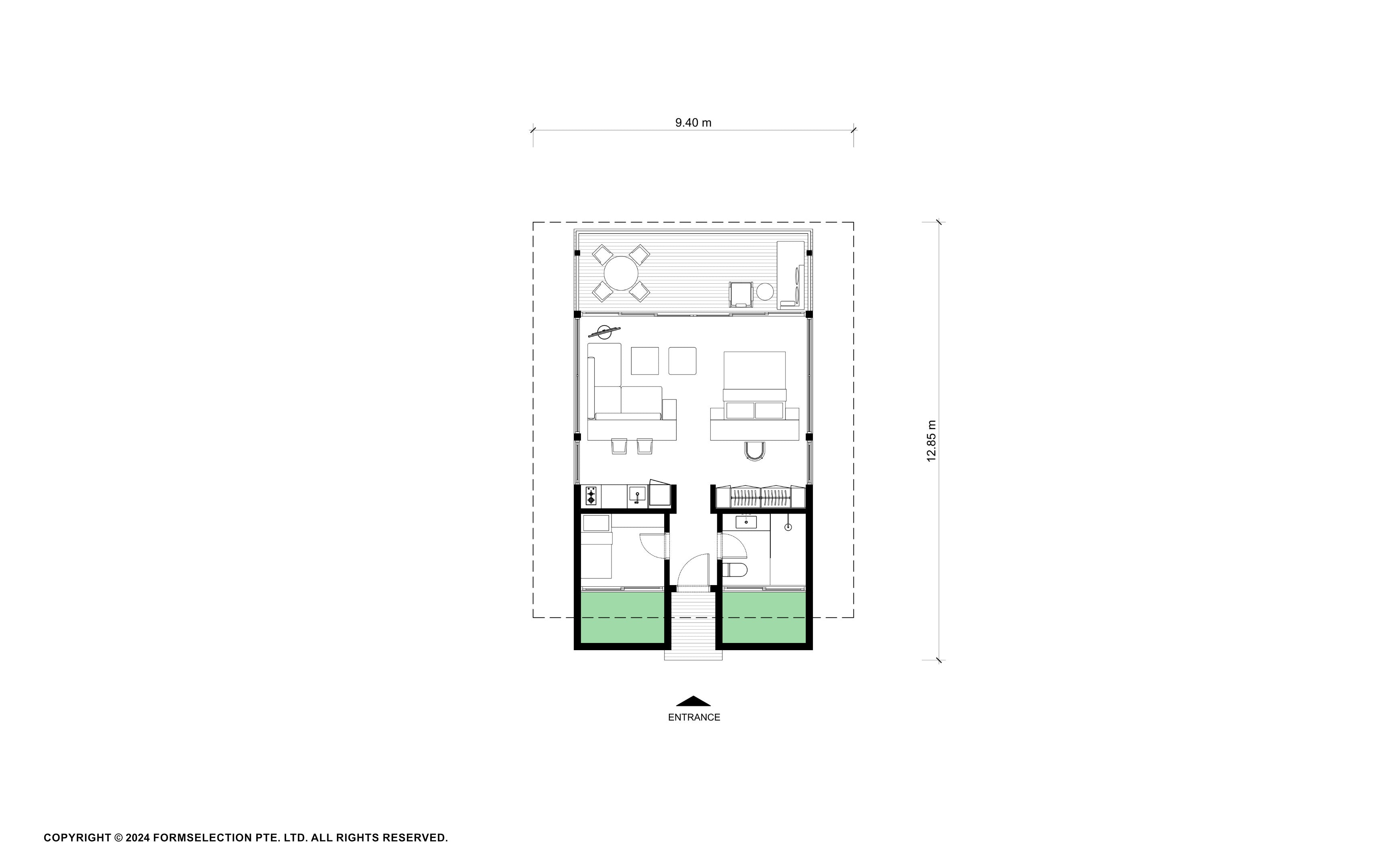

    • Floor Plans with Furniture Layout and Dimensions
    • Roof Plan
    • 2 Sections
    • 4 Facade Elevations
    • Gross Floor Areas (GFA)
    • Finishes Schedule (Exterior and Interior)
    • 20 High-Resolution 3D Renderings

Choose from the following purchase options:

    • PDF Only: Review the complete documentation before purchasing the Single-Use Licence.
    • Single-Use Licence: Includes CAD and PDF drawings and permission to use the design for a single build only.
    • Additional Build Licence: For additional builds using the same design.

Key Features:

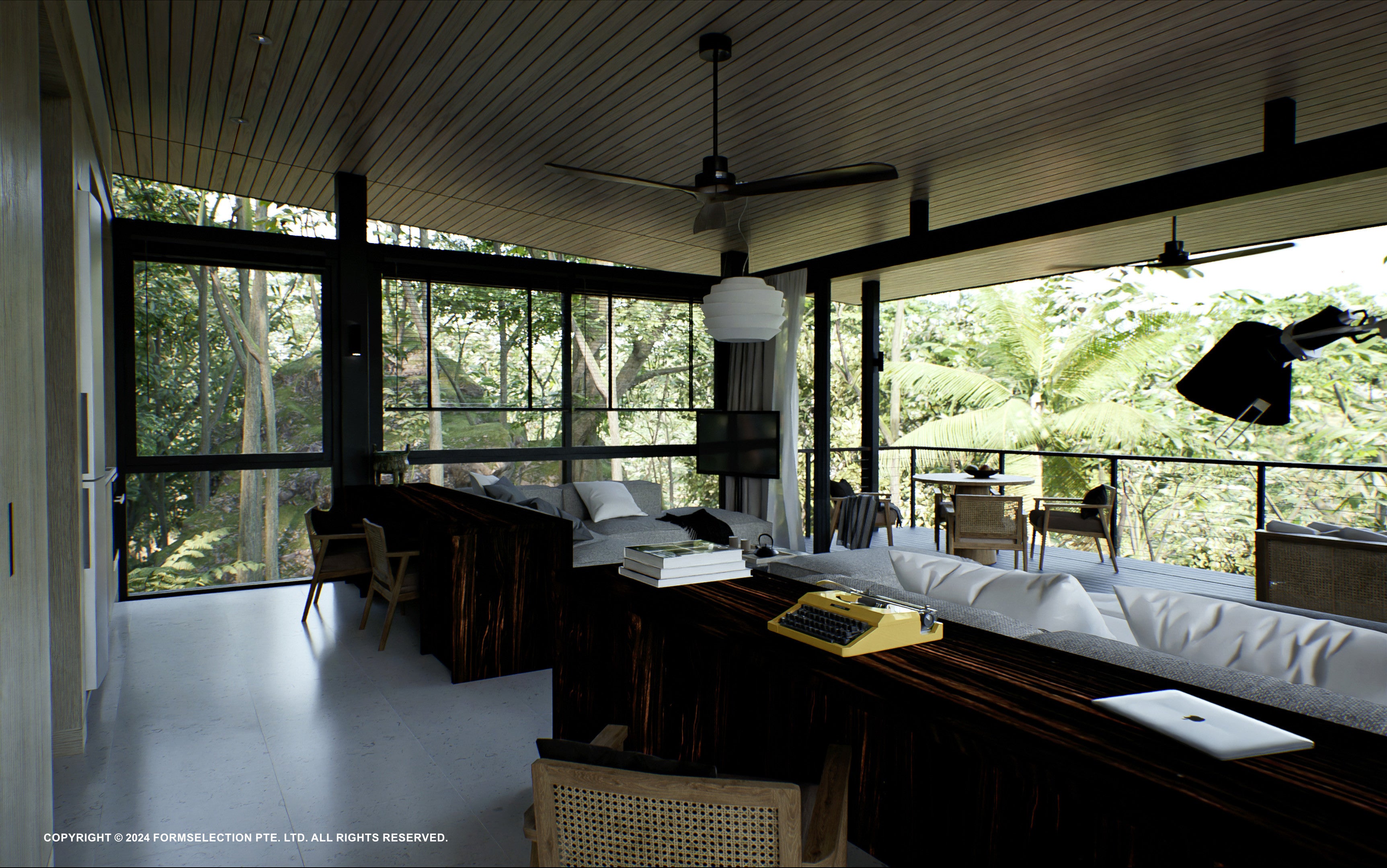

  • Innovative Layout: The villa features an open-plan Studio Suite that integrates a lounge, kitchen, and study area, creating a seamless living space. Additionally, there is a small guestroom and a shared bathroom, each with attached courtyard gardens that provide natural ventilation and added privacy.

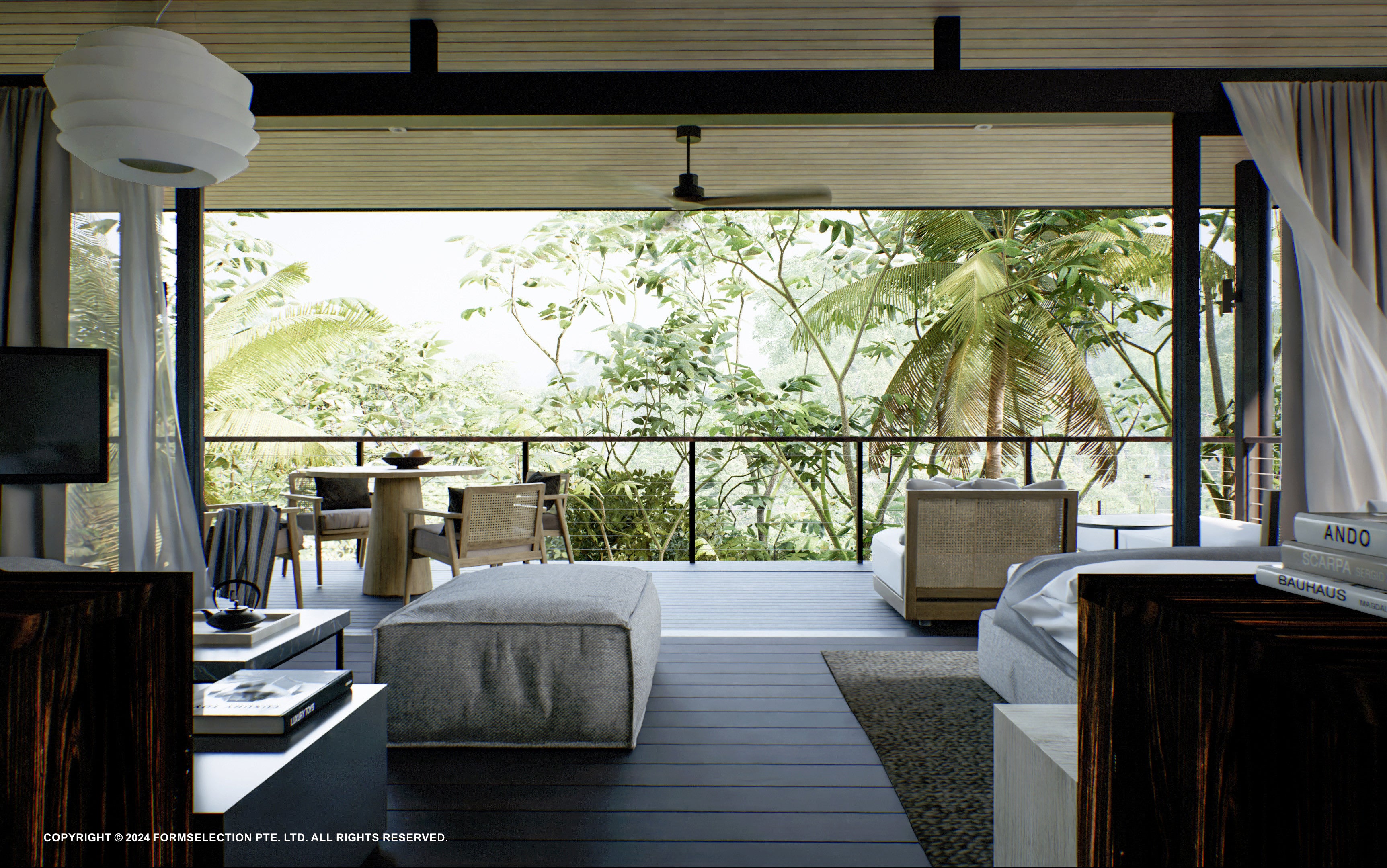

  • Outdoor Living: The Studio Suite opens to a spacious balcony equipped with an outdoor dining table and a daybed lounge area, ideal for relaxation and entertaining.

Main Parameters:

  • Total Bedrooms: 2

    • Studio Suite: 1 (King size bed)

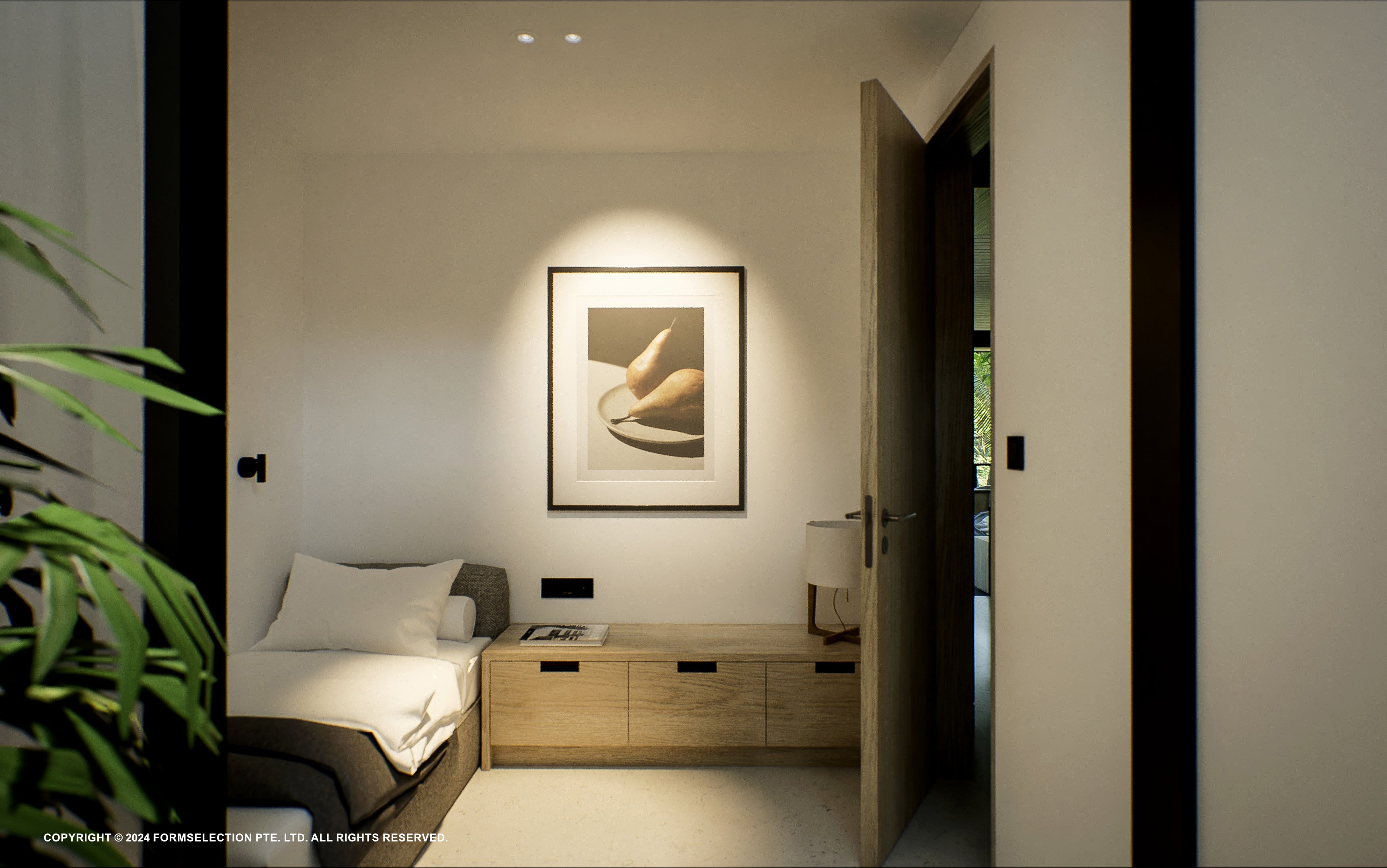

    • Guestroom: 1 (Fits a single bed or bunk bed)

  • Total Bathrooms: 1

    • En-suite Bathrooms: 0
    • Shared Bathrooms: 1

  • Total Dimensions:

    • Total Length: 12.85 m
    • Total Width: 9.40 m

  • Total GFA (Gross Floor Area): 87 sqm

    • Interior GFA: 57.75 sqm
    • Balcony GFA: 16.80 sqm
    • Exterior GFA: 12.41 sqm

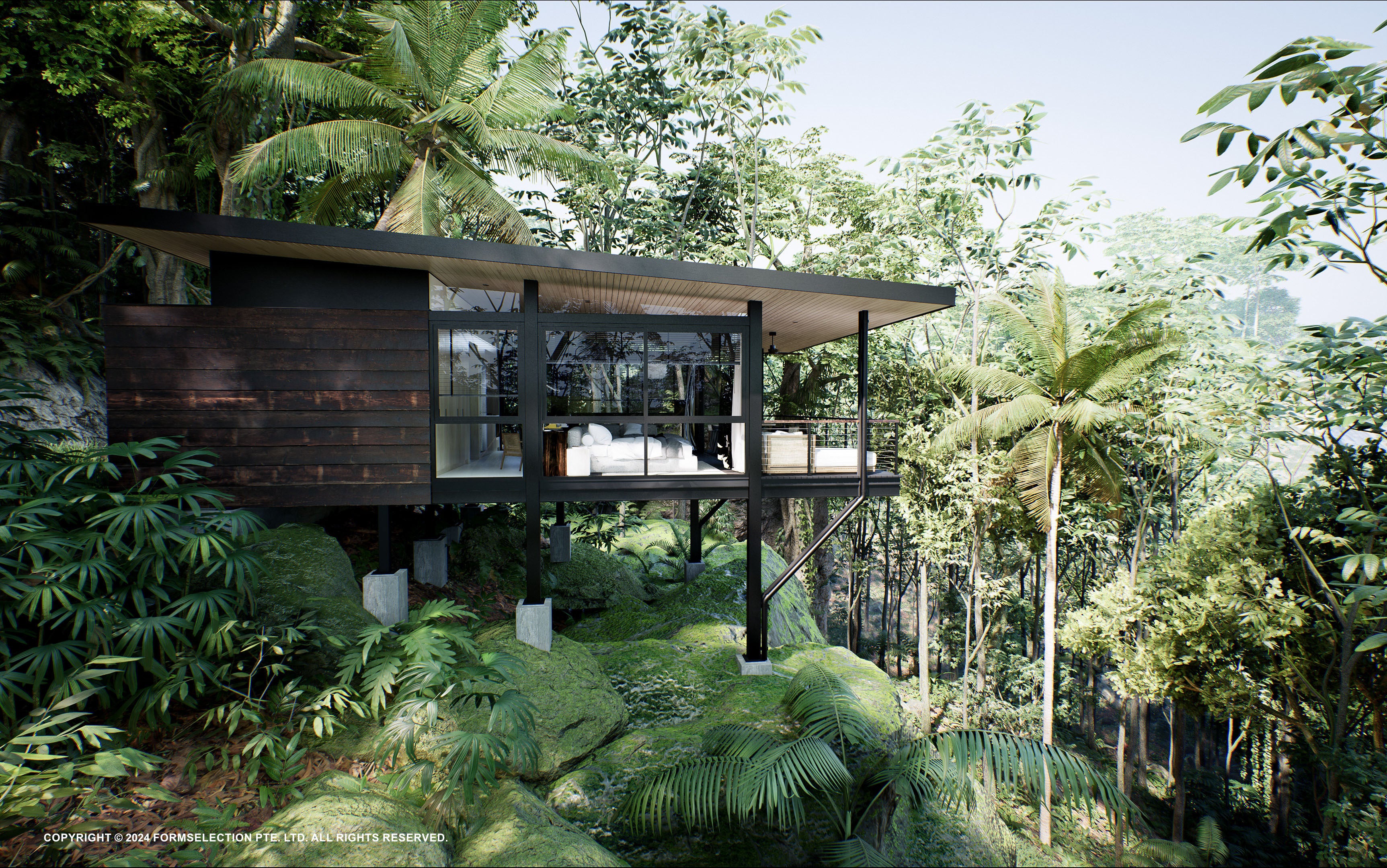

  • Proposed Structure:

    • Substructure: Reinforced concrete footings, structural steel
    • Superstructure: Structural steel
    • Roof Structure: Structural steel and LGS (Light Gauge Steel)

  • Special Features:

    • Open-plan studio suite with integrated lounge, kitchen, and study areas
    • Guestroom and bathroom with attached courtyard gardens
    • Spacious balcony with an outdoor dining table and daybed lounge area

IMPORTANT: Please read the Frequently Asked Questions on our FAQ page before purchasing.
