Seaside Retreat - Studio Suite with Guestroom and Pool

PROJECT INFORMATION

Introducing Concept 002, a meticulously crafted Concept Design package ideal for tropical and subtropical resort villa projects. This comprehensive Predesigned Concept Package offers developers conceptual drawings and high-resolution 3D renderings, providing a head start for the new project.

This Predesigned Concept Package includes:

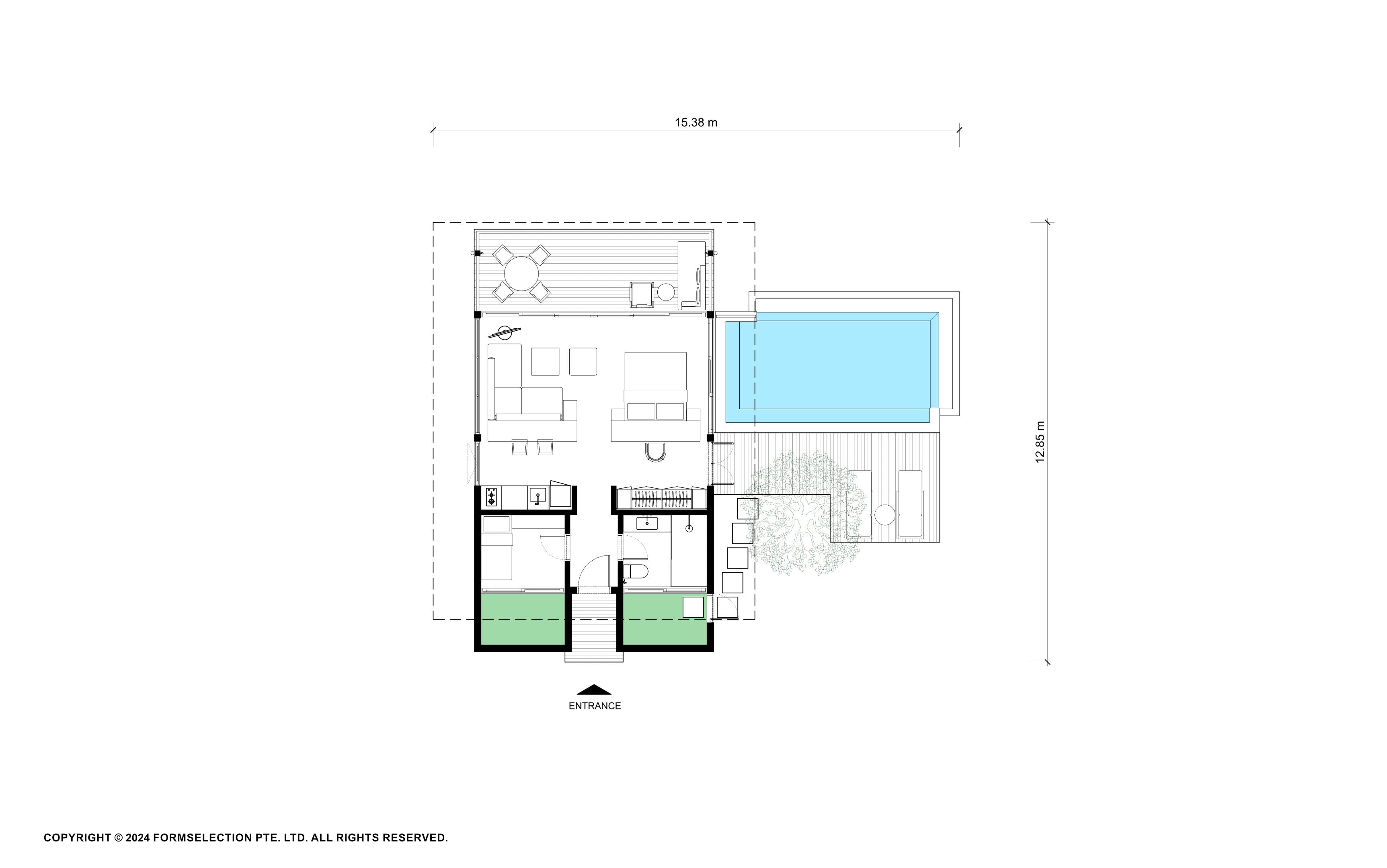

• • Floor Plans with Furniture Layout and Dimensions
  • Roof Plan
  • 2 Sections
  • 4 Facade Elevations
  • Gross Floor Areas (GFA)
  • Finishes Schedule (Exterior and Interior)
  • 20 High-Resolution 3D Renderings

Choose from the following purchase options:

• • PDF Only: Review the complete documentation before purchasing the Single-Use Licence.
  • Single-Use Licence: Includes CAD and PDF drawings and permission to use the design for a single build only.
  • Additional Build Licence: For additional builds using the same design.

Key Features:

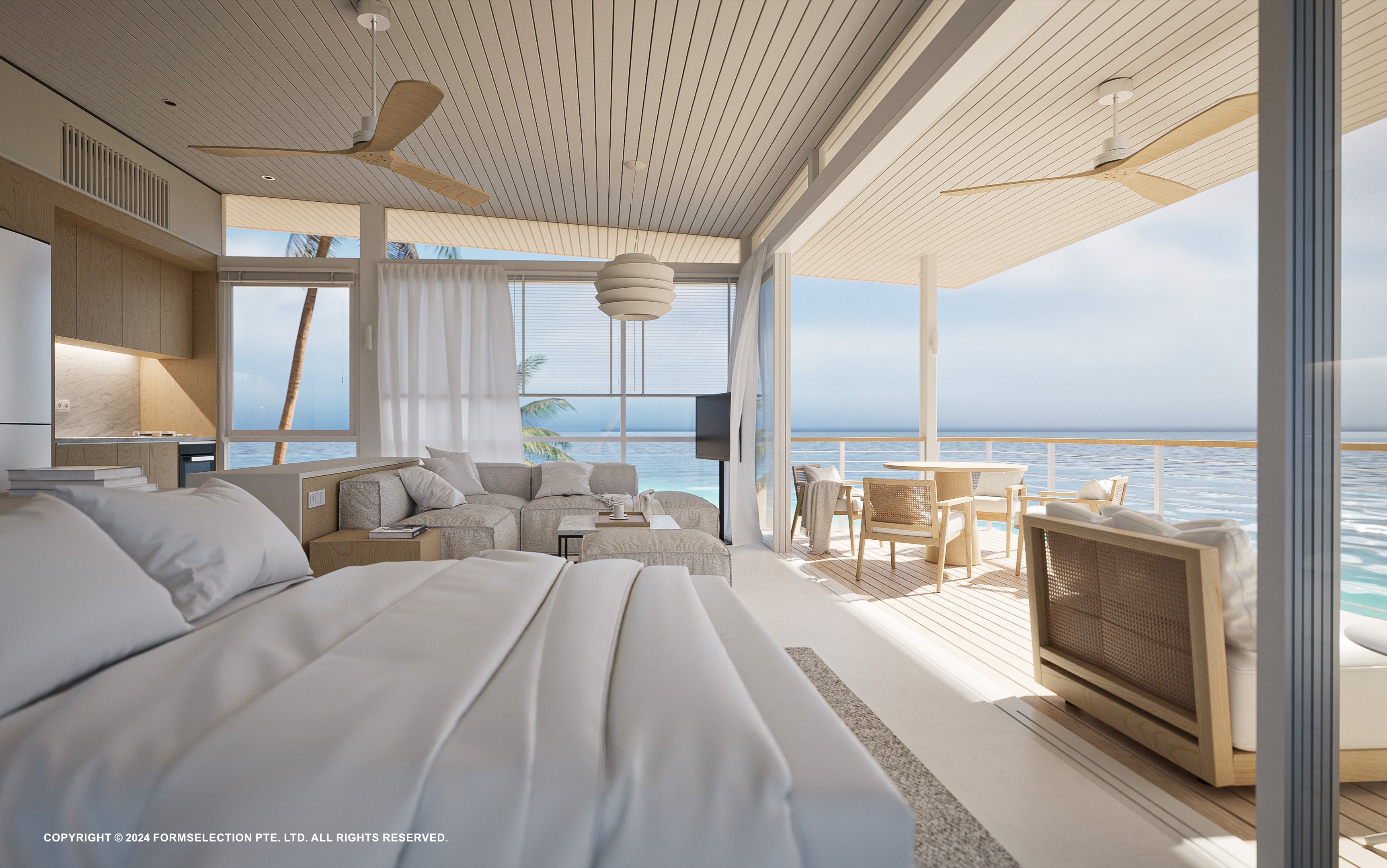

• Innovative Layout: The villa features an open-plan Studio Suite that integrates a lounge, kitchen, and study area, creating a seamless living environment. Additionally, there is a small guestroom and a shared bathroom, each with attached courtyard gardens that provide natural ventilation and added privacy.

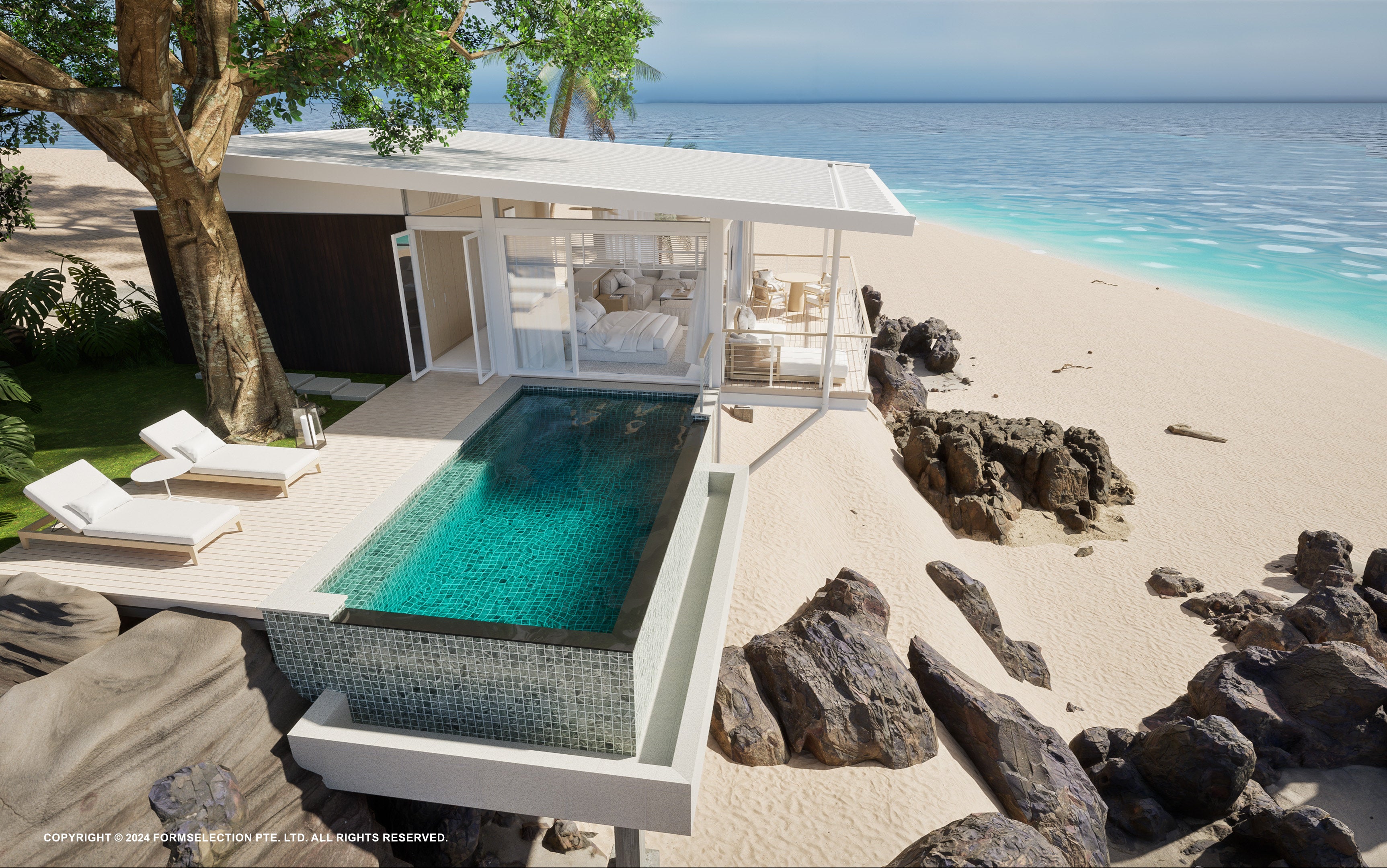

• Outdoor Living: The Studio Suite opens to a spacious balcony equipped with an outdoor dining table and a daybed lounge area, ideal for relaxation and entertaining. The outdoor space also includes a stunning infinity-edge plunge pool and a pool deck area, offering a luxurious spot to unwind while enjoying expansive views.

Main Parameters:

• Total Bedrooms: 2

  • Studio Suite: 1 (King size bed)

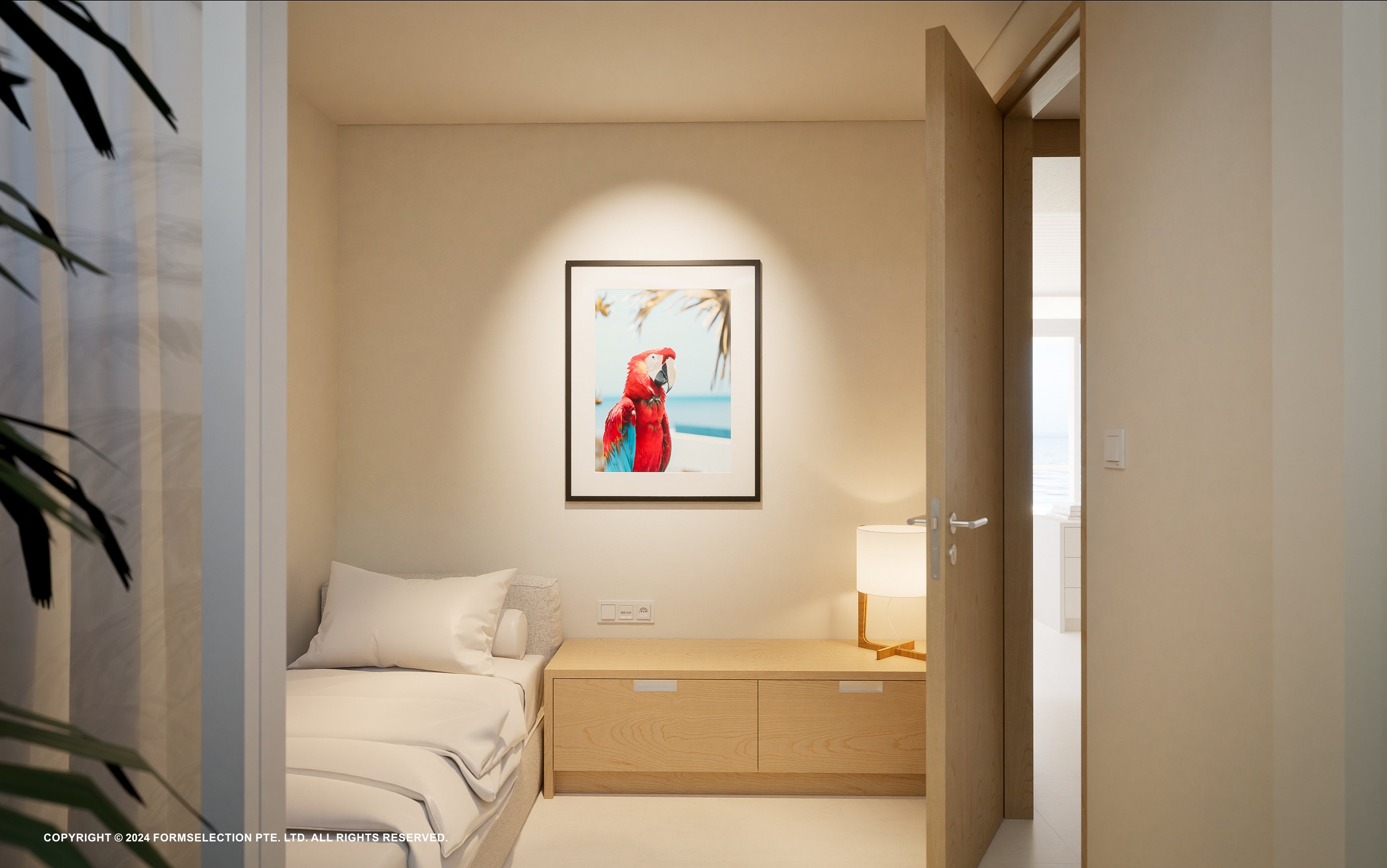

  • Guestroom: 1 (Fits a single bed or bunk bed)

• Total Bathrooms: 1

  • En-suite Bathrooms: 0

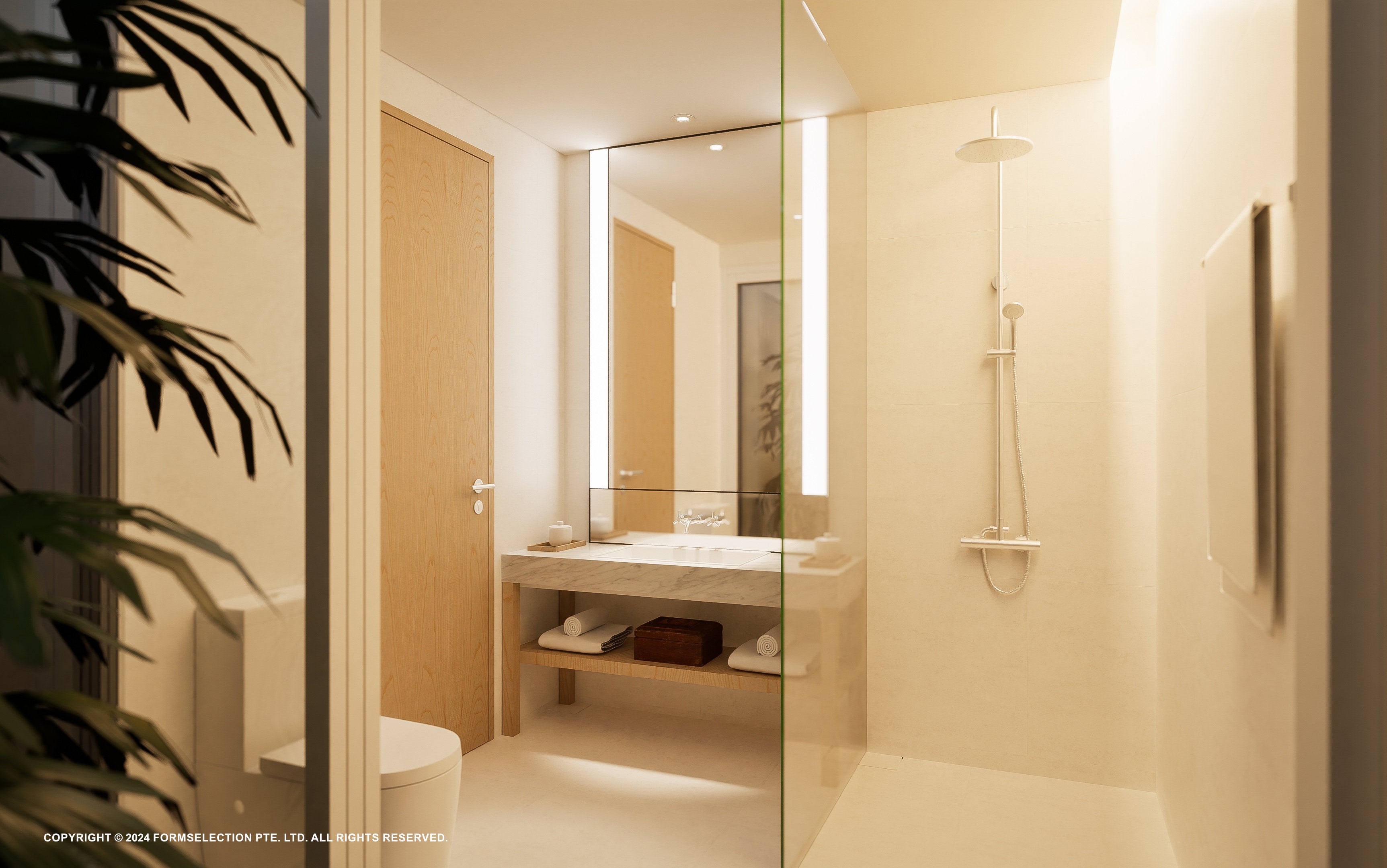

  • Shared Bathrooms: 1

• Total Dimensions:

  • Total Length: 15.38 m
  • Total Width: 12.85 m

• Total GFA (Gross Floor Area): 134 sqm

  • Interior GFA: 57.75 sqm
  • Balcony GFA: 16.80 sqm
  • Exterior GFA: 30.57 sqm
  • Pool GFA: 28.54 sqm

• Proposed Structure:

  • Substructure: Reinforced concrete footings and structural steel
  • Superstructure: Structural steel
  • Roof Structure: Structural steel and LGS (Light Gauge Steel)
  • Pool Structure: Reinforced Concrete

• Special Features:

  • Open-plan studio suite with integrated lounge, kitchen, and study area
  • Guestroom and bathroom with attached courtyard gardens
  • Spacious balcony with an outdoor dining table and daybed lounge area
  • Infinity-edge plunge pool with adjacent pool deck
